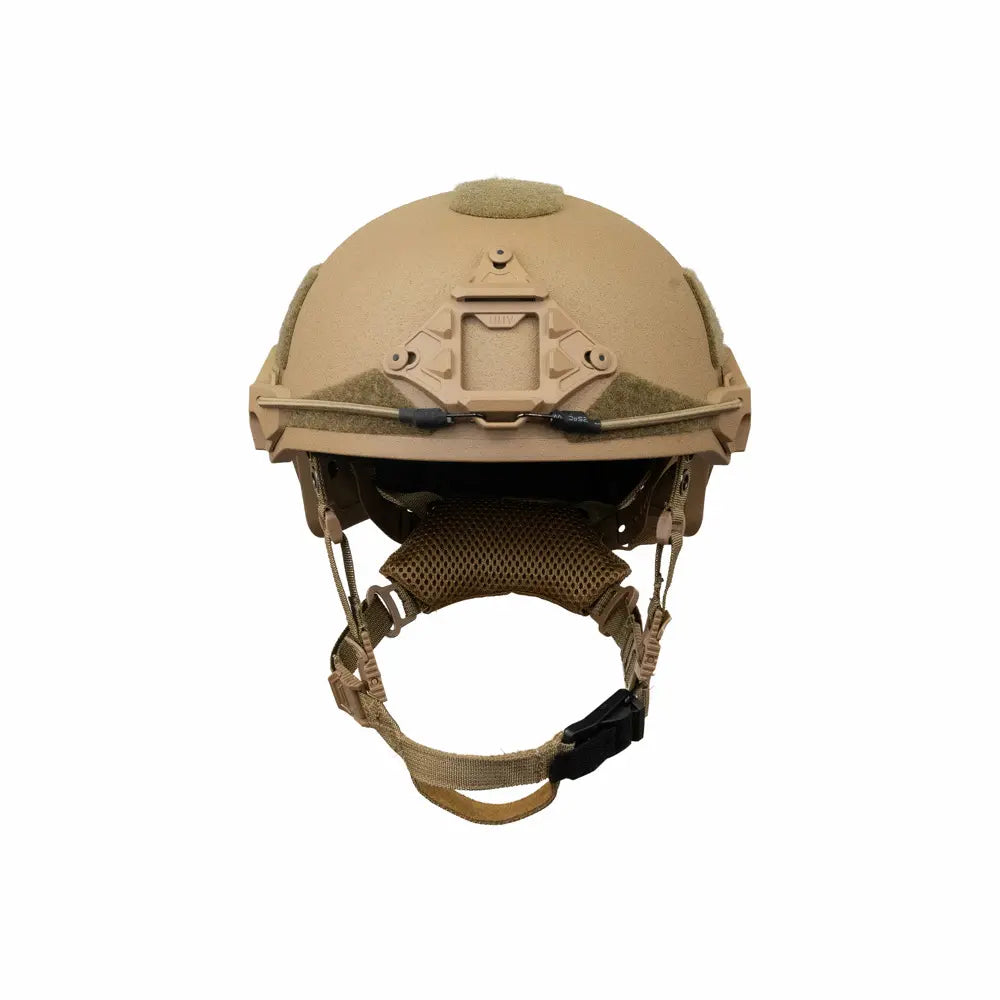

Ballistic Helmet ATE® HHV

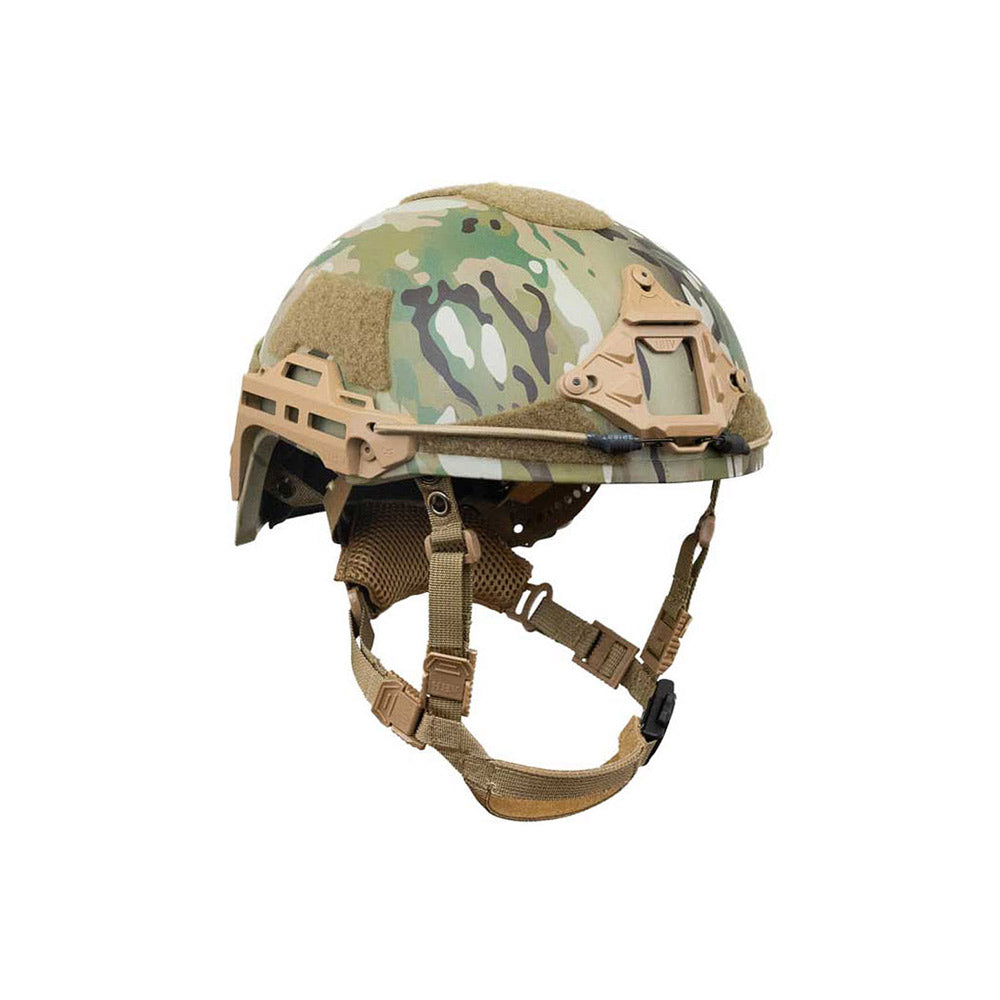

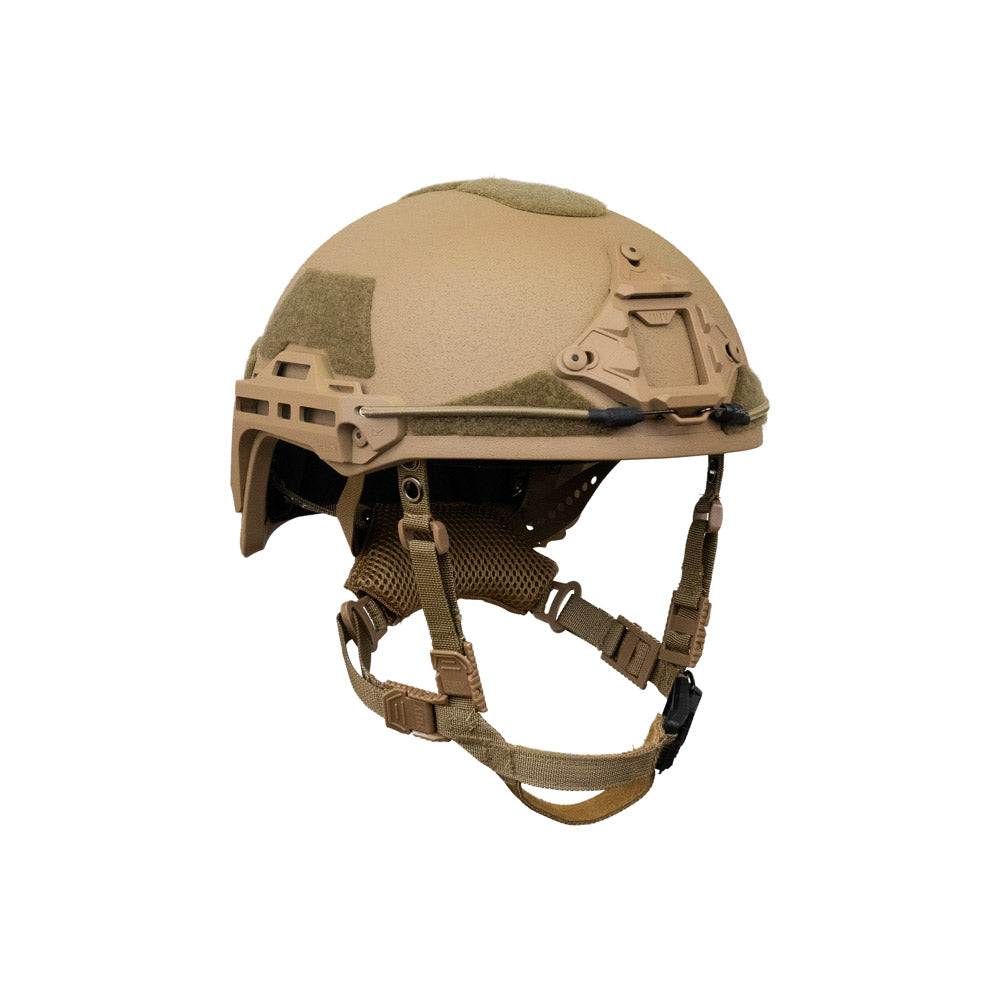

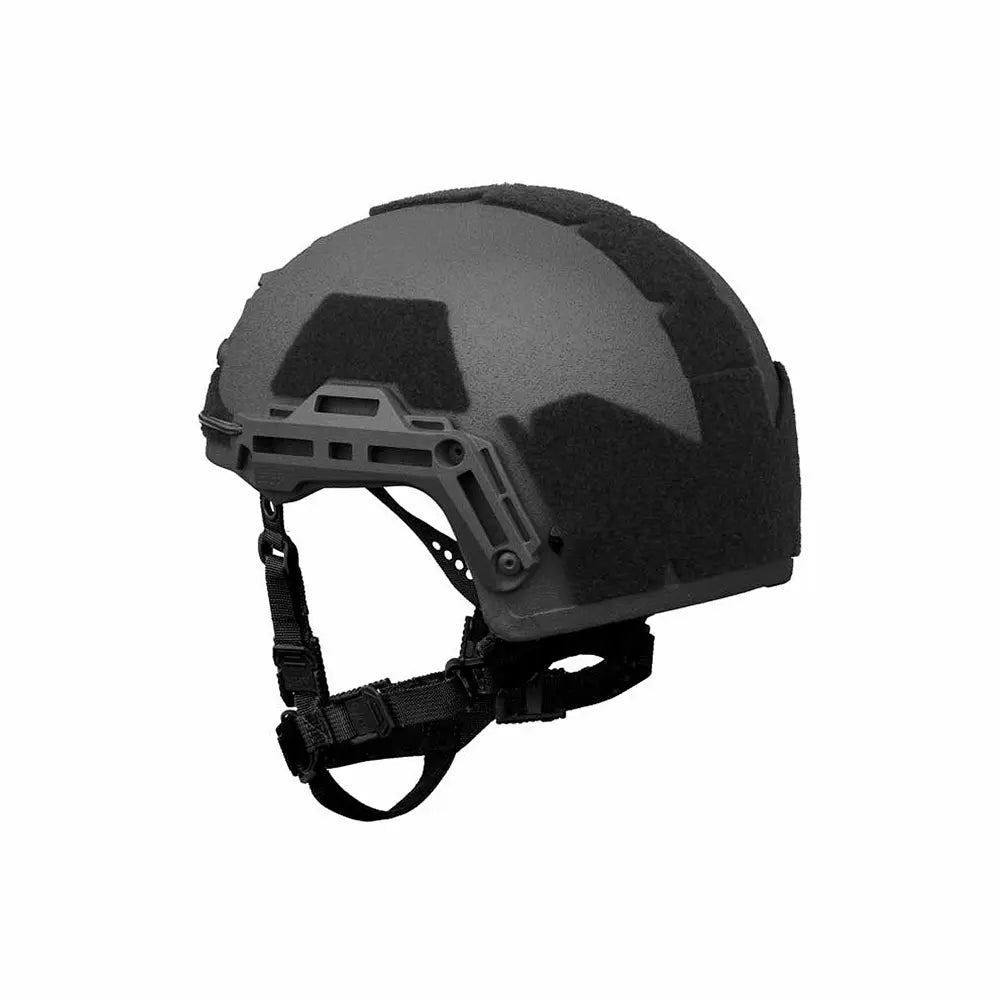

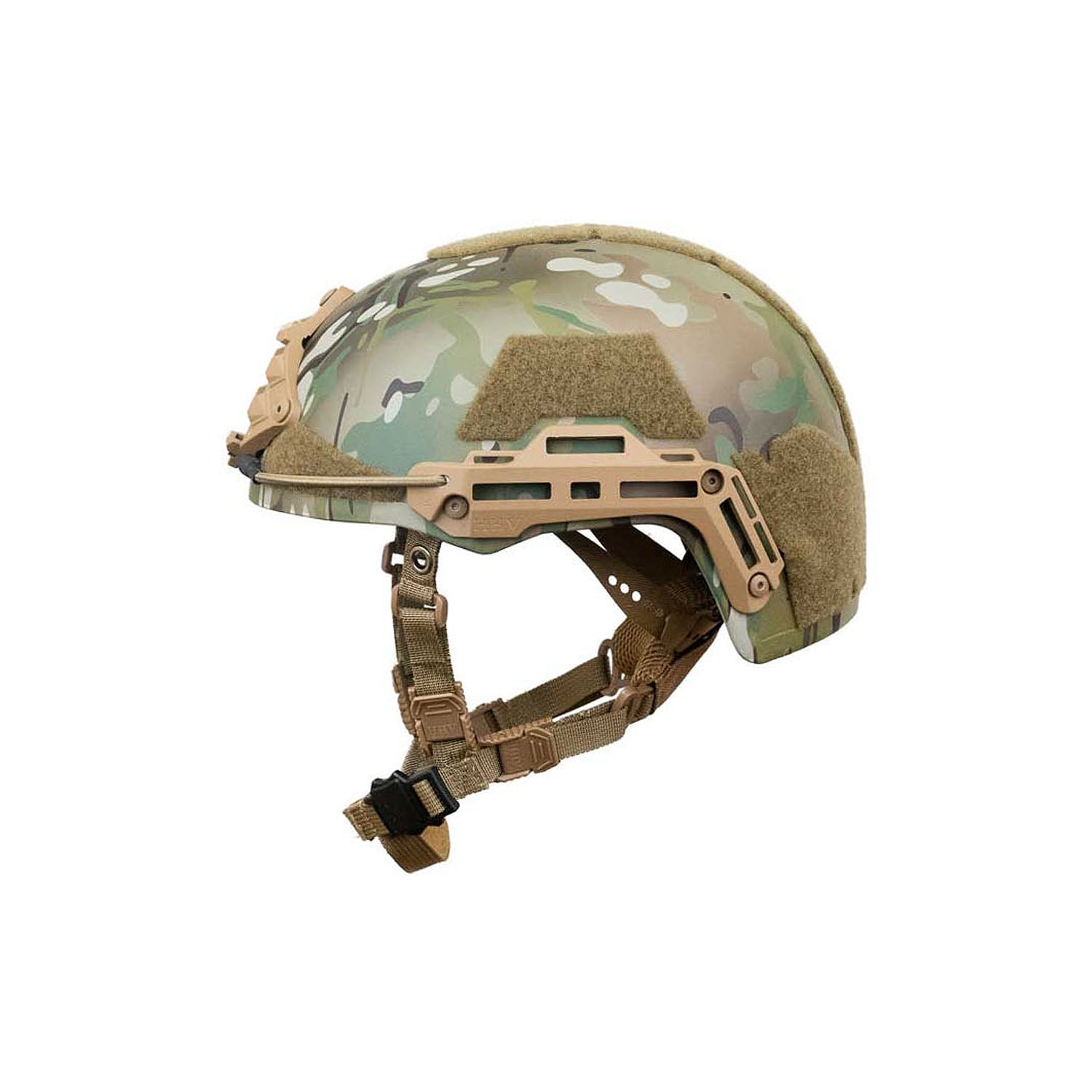

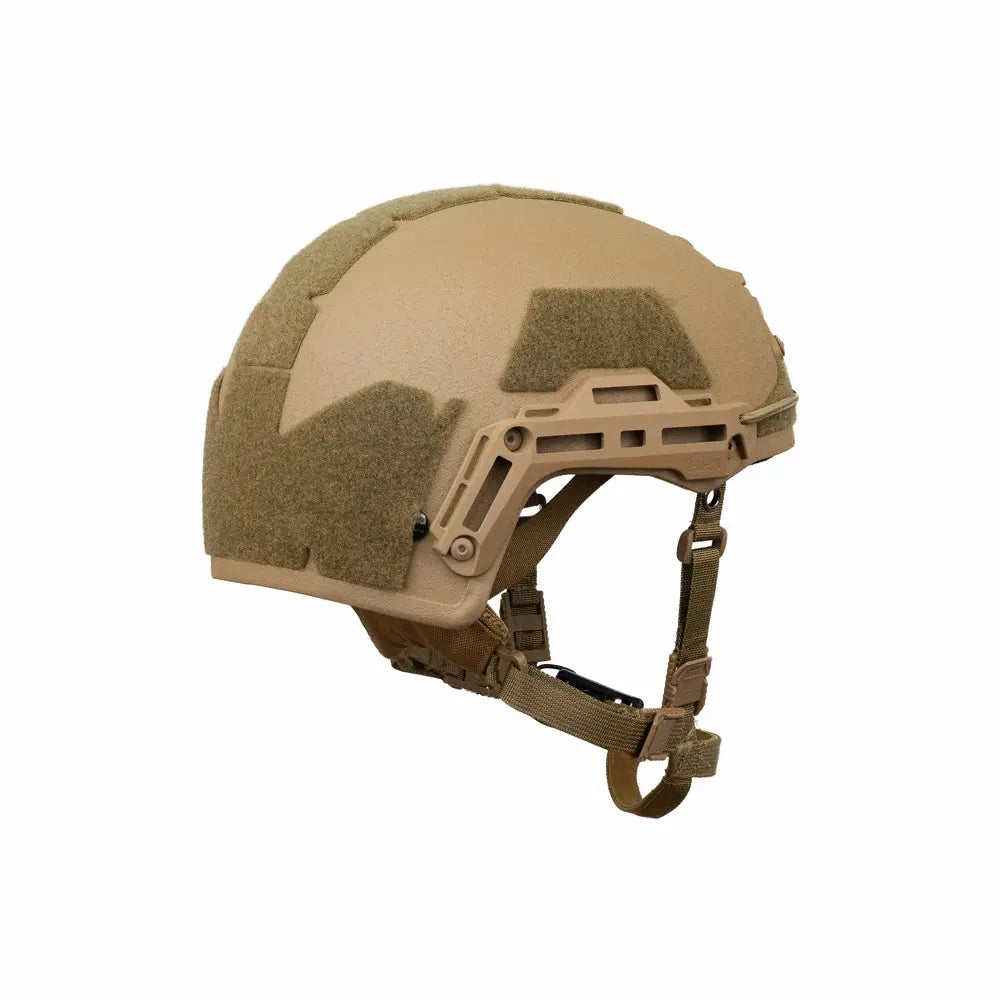

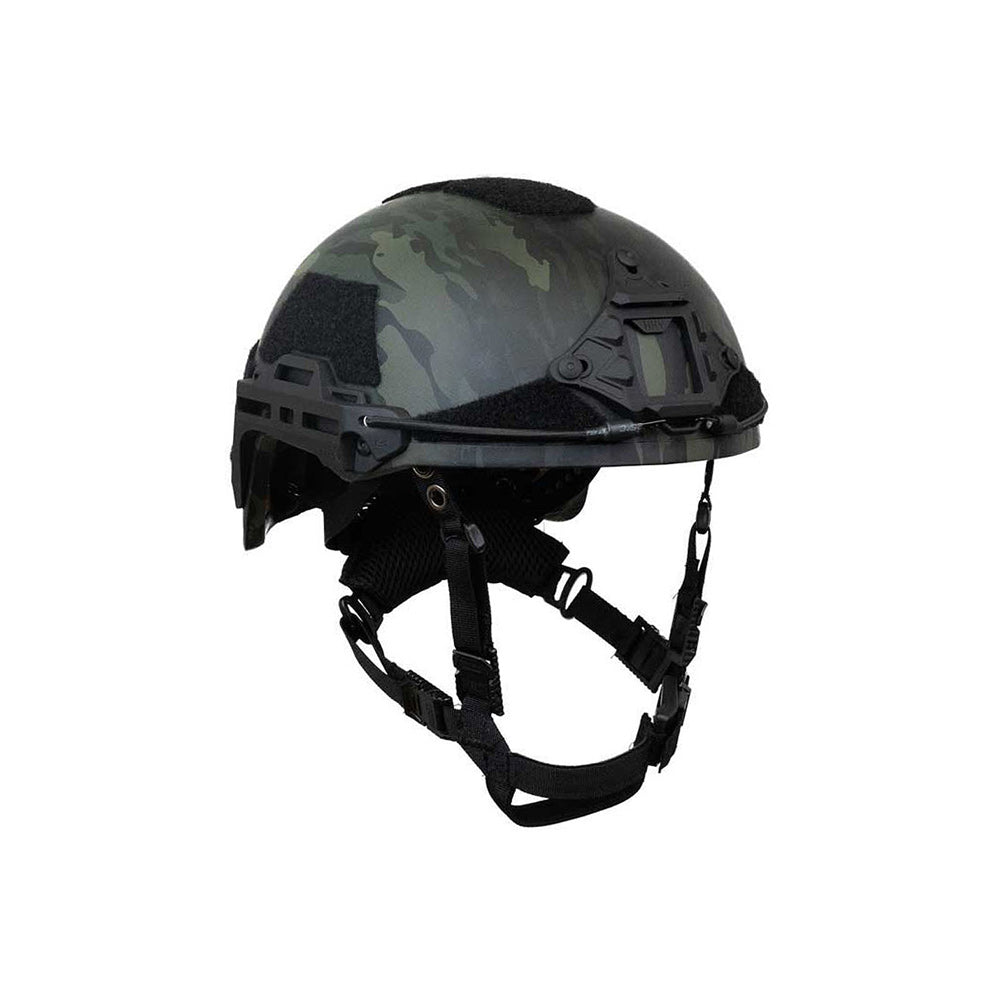

Ballistic Helmet NIJ Level IIIA with Above The Ear or High Cut Design. The HHV ATE® GEN2 Ballistic Helmet, Offers The Ideal Ballistic Helmets For Law Enforcement, Military, and Private Security Contractors. The ATE® GEN 2 Ballistic Helmet shell is made from DuPont™ Kevlar®. Our High Cut Helmet offers significant weight savings, with the ATE® weighing in at 3.00 lbs.

  • DETAILS
  • NIJ TESTING
  • PROPER FIT
  • 3D CONFIGURATOR
Tactical Helmet M-LOK Rails

M-LOK Tactical Helmet Accessory Rails


Utilizing the MAGPUL M-LOK® SYSTEM on tactical helmet rails have allowed us to reduce the overall profile of the helmet dramatically. This reduction in helmet profile translates into less of a risk of snagging in confined spaces or on parachute risers. It also gives the user enhanced modularity with accessory options, and fewer adapters to deal with. Click the tabs below to learn how the M-LOK mounting system works with our ballistic helmet and some of the most common rail accessories used.

How M-LOK® Mounting Works

DIRECT MOUNT CAPABILITY: Accessories are mountable directly from the front face of the slot. No access from the rear of the system is needed.

Tactical Helmet M-LOK Mounting

CAMMED T-NUT The M-LOK: direct attachment system features a custom, cammed T-Nut that positions the T-Nut consistently for installation and removal. Simply adjust the gap between the T-Nut and accessory to match the thickness of the mounting surface, align the T-Nuts with the slot, and insert in the desired location. An initial ¼ to ½ turn of the screw for each T-Nut rotates the nut into engagement and then you may tighten normally.

How to tighten M-LOK on helmet rail.

COMMON Helmet Rail ACCESSORIES

1913 PICATINNY RAILS: The polymer rails from MAGPUL with 3, 5, 7, and 9 slots will all fit on our ATE GEN2 tactical helmet rails in various configurations. Just about any tactical accessory is designed to work with these Picatinny rails. You can buy these rails directly from MAGPUL.

LIGHTS: Tactical helmet lights are one of the most common additions to our ATE ballistic helmets. They come for just about every application from IR and red light, to super bright. Utilizing a standard 1913 Picatinny rail on the M-LOK system, you can mount any of them. Check out this blog on tactical helmet lights for more info!

HEADSET ADAPTERS:  Allow users to attach their communications headsets such as Peltor headsets or MSA Sordin headsets directly to the tactical helmet rail itself. For our M-LOK rails check out Unity Tactical and their MARK kits if you want to mount comms directly to our rails.

CAMERAS: Helmet mounted video cameras also know as helmet cams have become prevalent for the enthusiast, police, and military. They allow for detailed after action reviews and reports, be it for training, evidence, or combat. You will find the most common ones in use in this blog post!

A3S Shroud Tactical Helmet

A3S Shroud (Adaptive 3-Hole Shroud)


Our A3S shroud is manufactured out of aircraft grade aluminum and weighs less than the majority of shrouds on the market. Each helmet includes bungees to help with night vision goggle wobble, and these conveniently connect to the bottom of our A3S shroud when not in use. This can also be used to lanyard in night vision goggles and other gear. It's designed to be compatible with most standardized NVG mounts from Wilcox to Norotos. It's a tank of a shroud without all the weight!

A3S Shroud COMPATABILITY

DESIGNED FOR COMPATIBILITY: The A3S Shroud works with the most common NVG mounts. Such as the Wilcox L4 series, or Norotos RHINO's along with many others.

Tactical Helmet Shroud Compatability

SHROUD TIPS AND MAINTENANCE

FITMENT:  The fitment between the shroud and mount should be secure with minimal wiggle. Mount should not pop off when force is applied unless released. Most new mounts also come with a break-away feature that when engaged, will allow the mount to pop off the shroud when force is applied. Make sure to test your mount and shroud connection.

MAINTENANCE: Shroud maintenance is straightforward and easy. Ensure to keep the shroud clean and free of debris. If needed rinse with fresh water, and brush out any debris. A toothbrush works great for this. Check mounting hardware to ensure tightness between the tactical helmet shell and the mount itself.





Tactical Helmet Shroud A3S

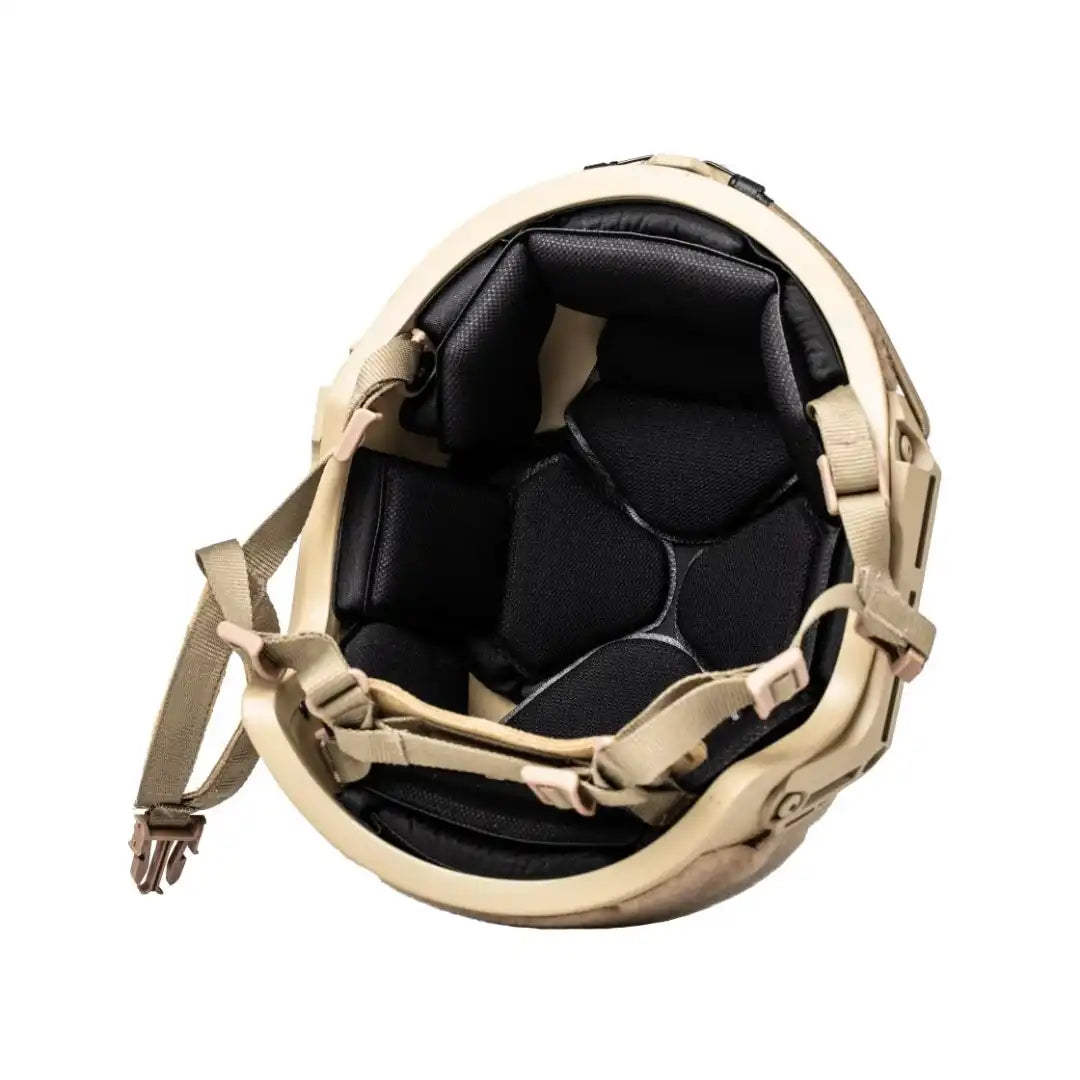

Initial Impact Pad System


Our Initial Impact pad system is a 2 part system designed not only to protect you from ballistic and blunt impacts but provide you with optimal comfort as well. We include two sizes of different thickness comfort pads, in addition to the Initial Impact base layer. Click the tabs below to learn about each layer and how they can benefit you.

INITIAL IMPACT Layer

DESIGNED FOR IMPACT: The padding on a helmet is just as important as the shell when it comes to protection performance. Detailed studies have shown that the best performing pads when it comes to ballistic and blunt impact are those that are not too hard, but also not too soft. This is precisely what our impact layer is designed for, utilizing a specially designed closed cell foam, in combination with our comfort layers, we can achieve extremely low Blunt Impact Uni-Axial impact numbers in addition to low back face deformation numbers.

Initial Impact Layer On Tactical Helmet

Comfort Pad Layer

DESIGNED FOR COMFORT: Our comfort pads provide additional protection, but just as important, long-term comfort. They are designed using a proprietary open cell memory foam that conforms to your head shape. Each head is different, and that is why we also include two different sized pad sets of our comfort plus pads. This allows you to mix and match these re-positionable pads to achieve your ideal fit. If you have ever worn a standard MICH, ACH, or ECH you know just how uncomfortable they can be. Hot spots, headaches, and fatigue set in, even after short periods of use. Our Comfort Pads eliminate these issues and allow you to find the perfect fit.

Comfort Pads for Tactical Helmet
Tactical Helmet Padding

Tactical Helmet Testing


WHAT TESTING IS MOST IMPORTANT?

When it comes to ensuring a tactical helmet performs there are no shortcuts. There is more than a simple resistance to penetration test, and they are best performed in a laboratory. Military helmets worn by our troops must pass a strenuous string of lab tests before a contract is even awarded. We use these same tests for the baseline of our helmets, then meet and exceed them. Any tactical ballistic helmet you ever consider purchasing should at the very least have satisfactory RTP (Resistance To Penetration), BTD (commonly referred to as Backface Deformation), V50, and Blunt Impact test data for review upon request from the manufacturer. We like to go a step further and publish this information directly on our website for review!


V50 Ballistic Testing Information

Is defined as the average of an equal number of highest partial penetration velocities and the lowest complete penetration velocities which occur within a specified velocity spread. In simple terms, you are testing the ballistic limits of the tactical helmet.

Process:

  1. The tactical helmet is mounted to head form with 2024-T3 Alum witness plate.
  2. The helmet is fired upon. Typically starting with a high starting velocity, then decreasing powder charge and velocities to produce complete, partial and no penetrations.
  3. High partial and low complete penetrations are recorded. V50 velocity is then calculated.
V50 Helmet Test Projectiles

Source: DAVROMATIC

BTD/BFD Testing Information

Helmet BFD is measured by the non-perforating ballistic impacts from RTP testing. It is defined as the maximum depth in the post-impact clay surface at the predetermined impact location as measured from the original clay surface.

Process:

  1. After mounting the helmet on the head form and mounting the head form in the test fixture, the tactical helmet is removed from the head form, and the clay surface is scanned with a laser.
  2. The helmet is then reattached to the head form and the shot taken.
  3. The tactical helmet is again removed from the headform, inspected for penetration and perforation, and the clay is rescanned with the laser to calculate BFD.



Tactical Helmet Testing Backface Deformation

Source: HHV Testing FARO

Blunt Impact Testing Information

Helmet blunt impact testing is designed to measure the protection against realistic blunt impact threats including falls, parachute drops, and motor vehicle crashes.

Process:

  1. Tactical helmet is positioned on a monorail drop tower.
  2. Helmet is dropped on different impact sites. (Crown, Front, Back, Right, Nape, Left Nape, Left Lateral, Right Lateral).
  3. Peak acceleration is measured (G's)



Blunt Impact Energy Limits

Source: AGARD AR-330

HOW TO CHOOSE YOUR TACTICAL HELMET SIZE


HOW TO MEASURE YOUR HEAD

Start by wrapping a measuring tape around the circumference of your head, just above your ears and eyebrows. Where the tape overlaps is your measurement.

No measuring tape? No problem! Use a piece of string to mark the overlap, then measure the string.

Use the size chart to find where your optimal tactical helmet size should be.

Also, don't worry if you choose the wrong size. We offer an easy exchange policy!

SIZE CHART

SIZE CIRCUMFERENCE

M/L

20 1/4" - 23 1/2"

L/XL

23 1/2" - 24 3/4"


If you are between helmet sizes, choose the larger size.

Every head is different, so we include two different size pad sets for you to achieve the ideal fit.
