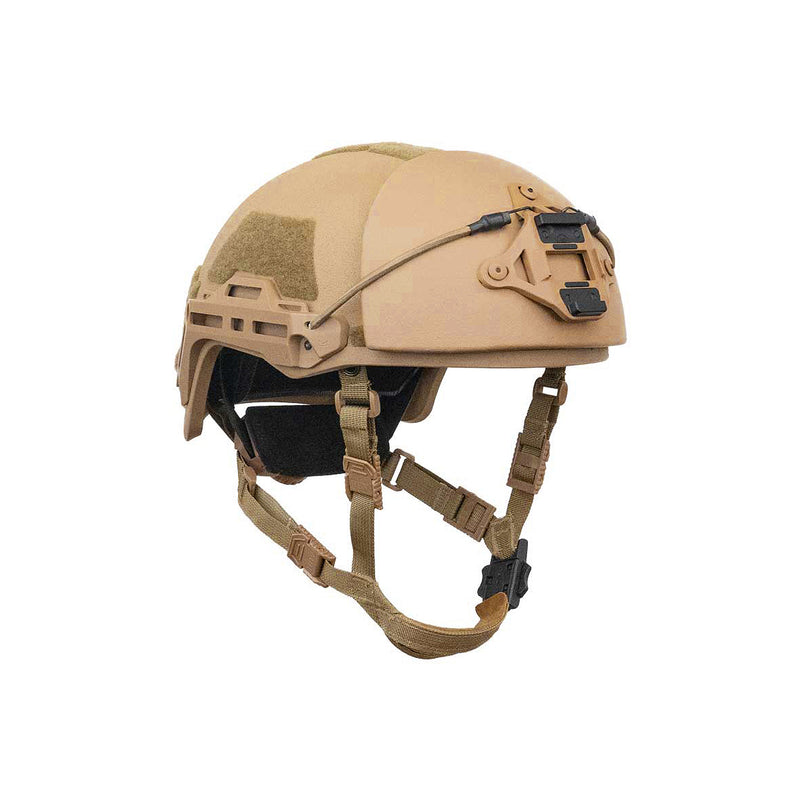

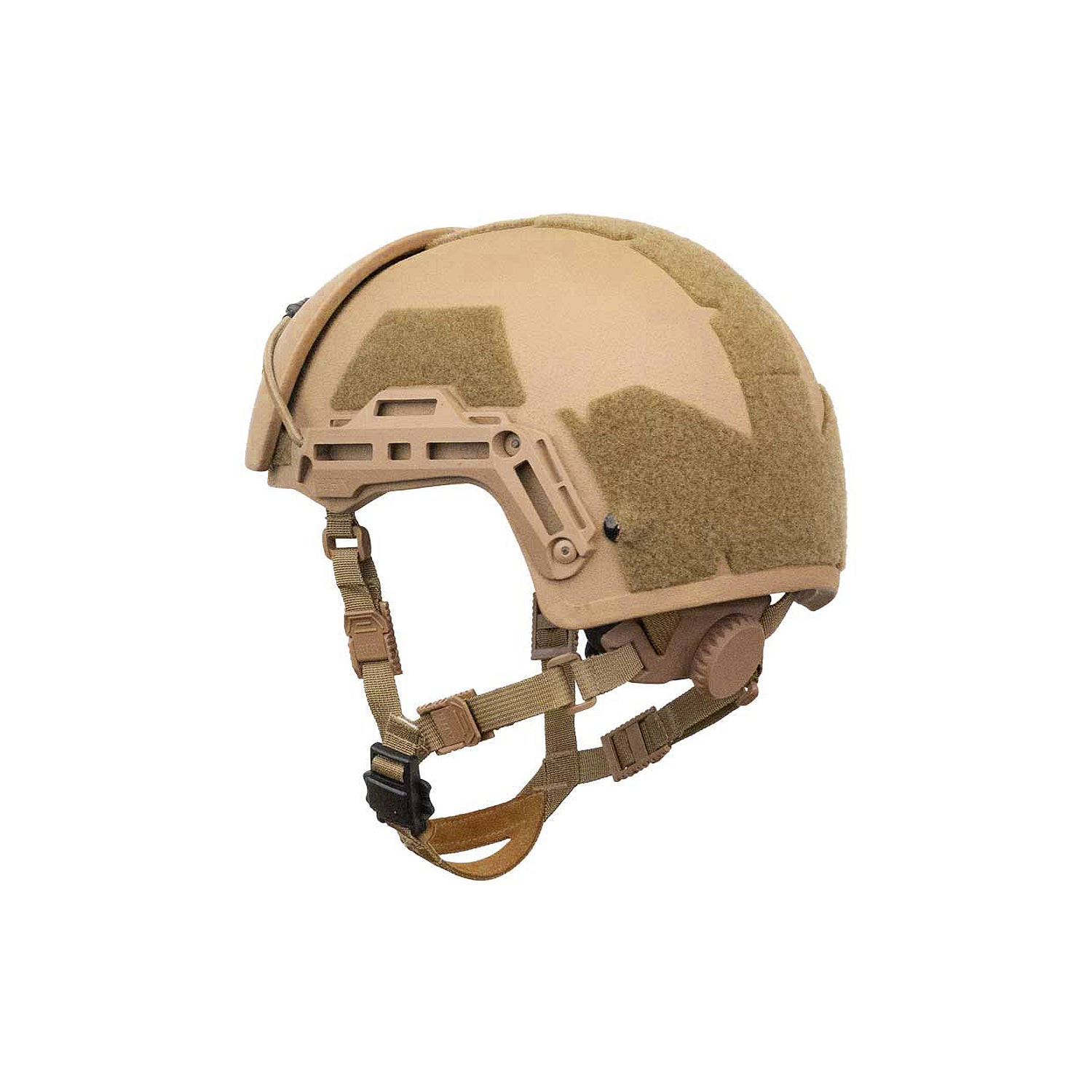

Tan Hard Head Veteran ATE Rifle Helmet with Up-armor facing left

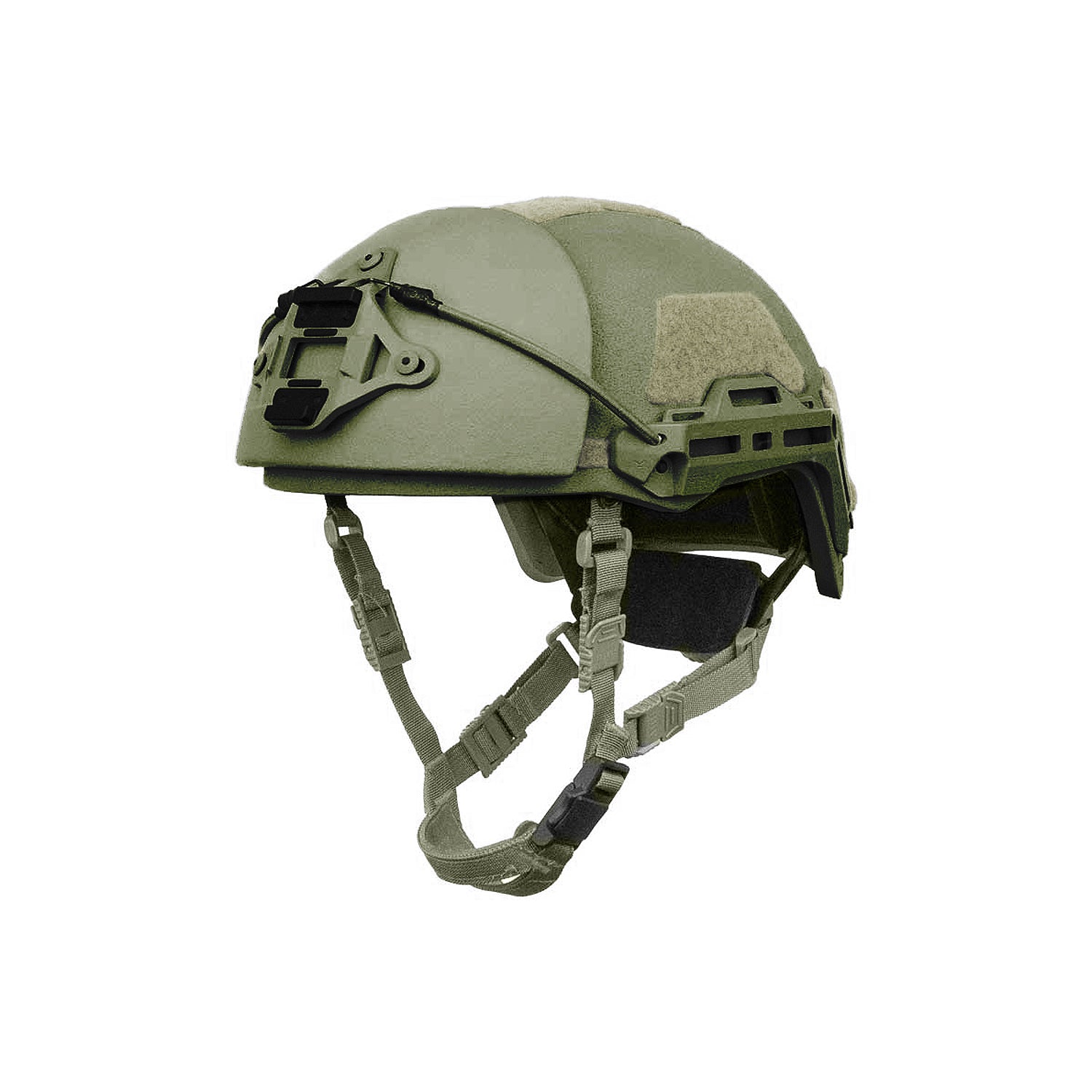

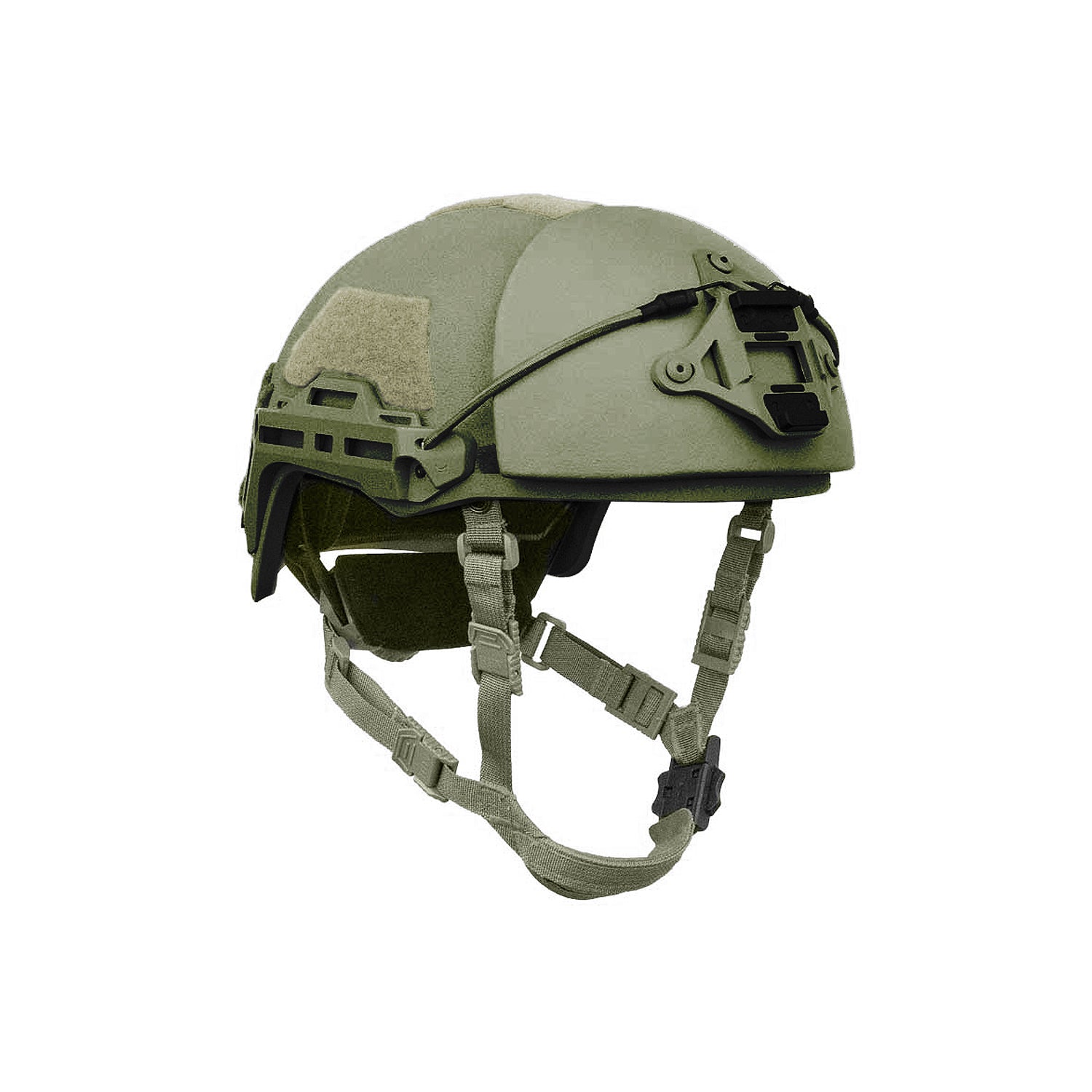

OD Green Hard Head Veterans ATE_Rifle Helmet with Up-armor facing left

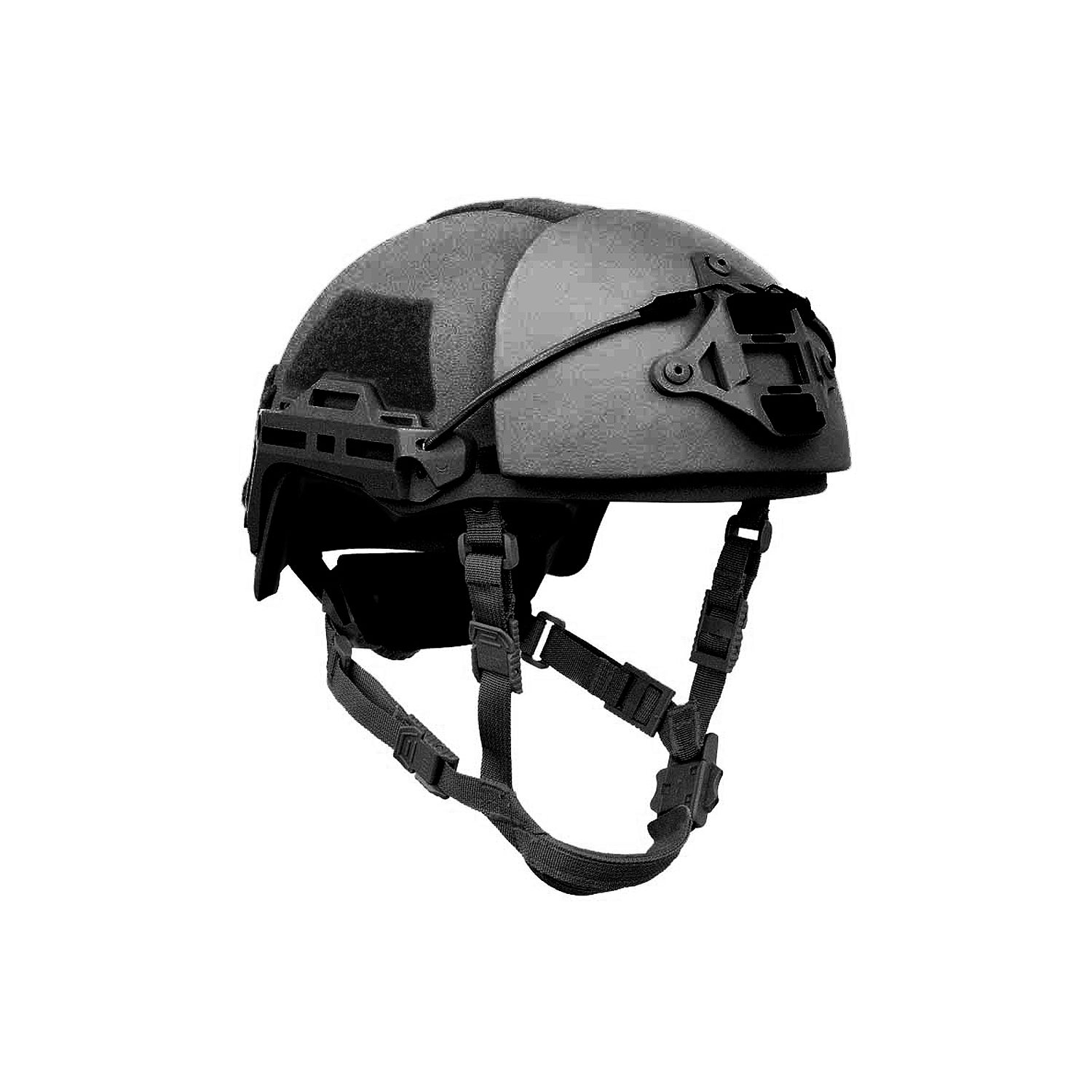

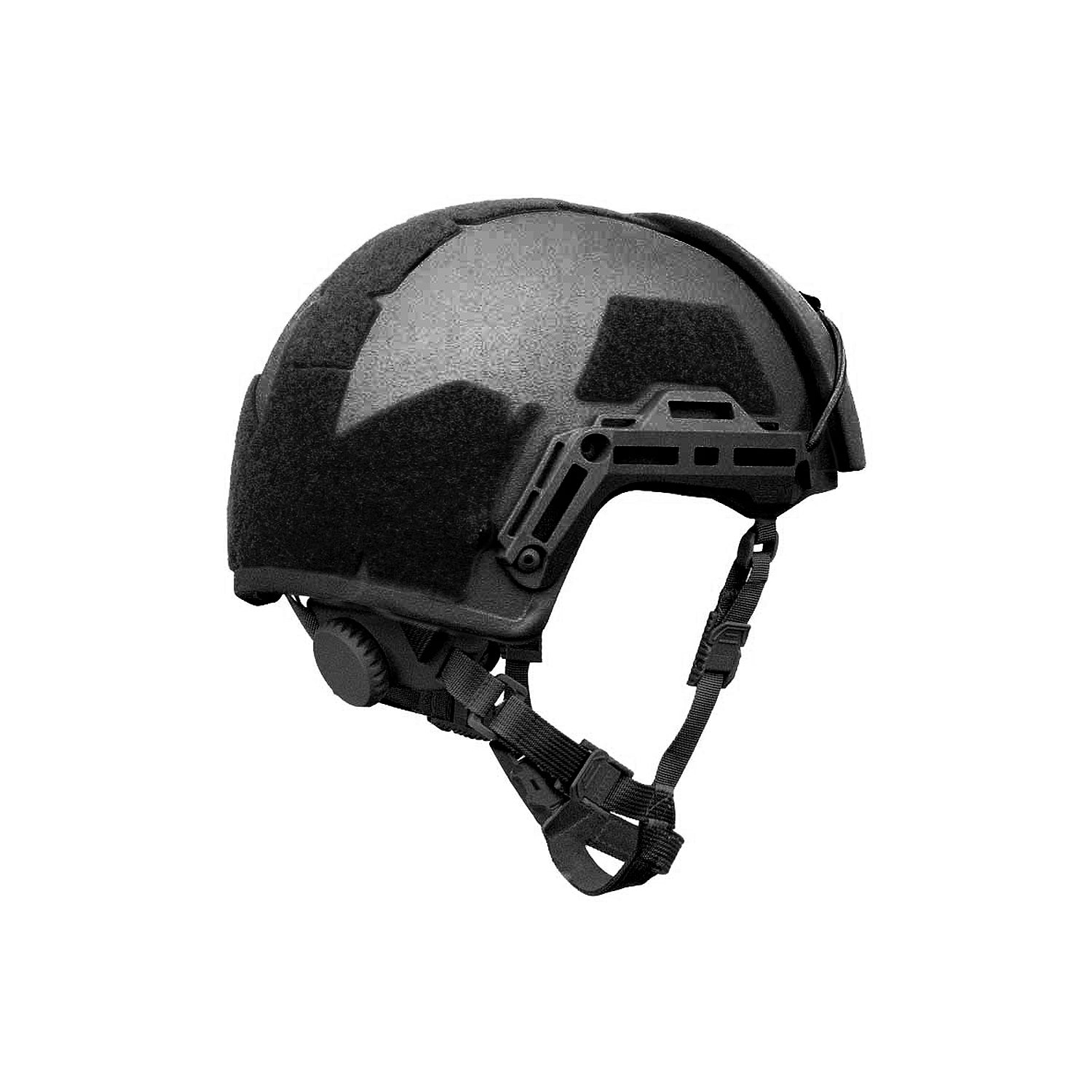

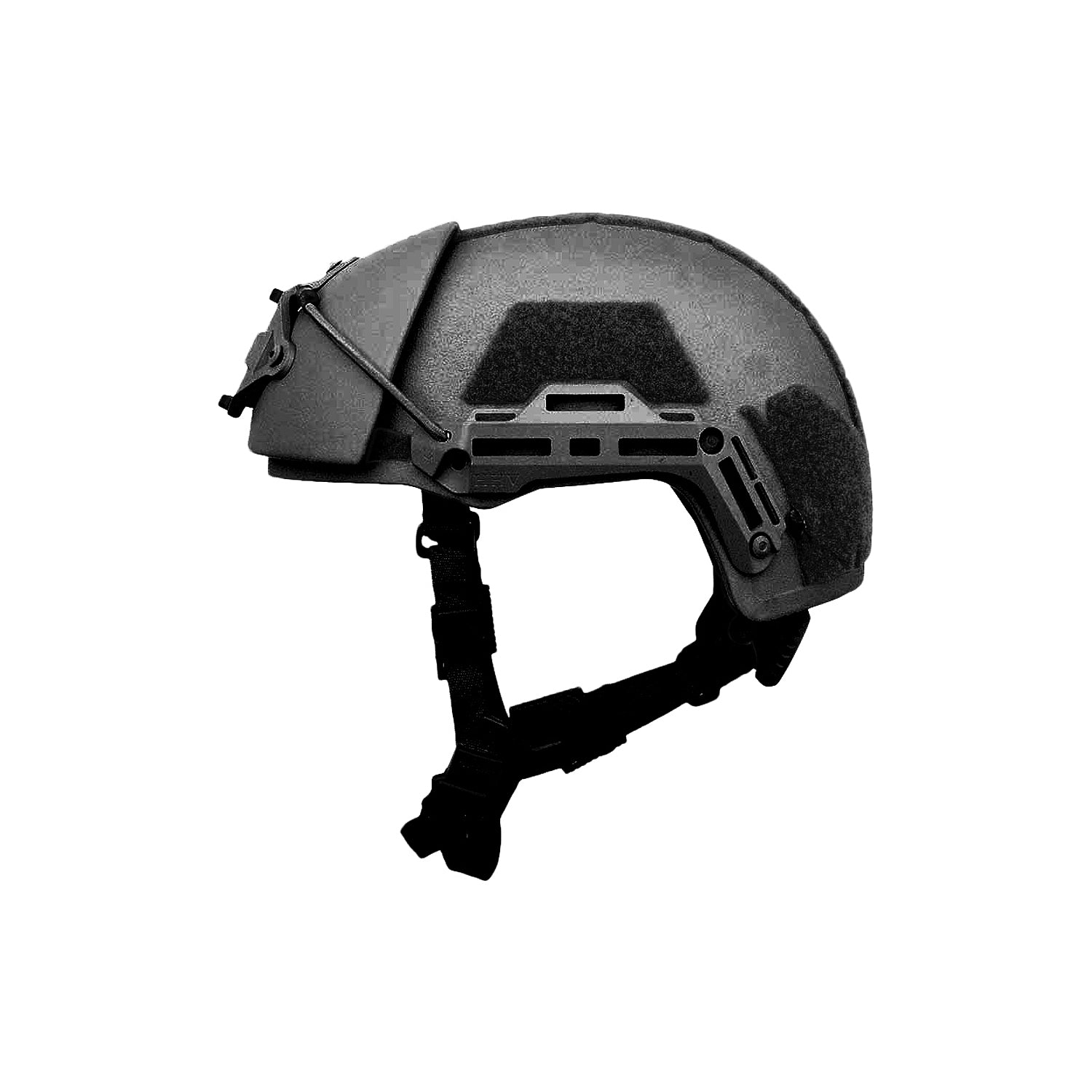

Black Hard Head Veterans ATE Rifle Helmet with Up-armor facing left
up-armor_protection
Front Hard Head Veterans ATE_Rifle
ATE_Rifle Helmet System
Hard Head Veterans Rifle Rated Helmet
Green Rifle Rated Helmet HHV
Up-Armor Rifle Rated Ballistic Helmet
ATE_Rifle from Hard Head Veterans
USA MADE

Ballistic Helmet ATE® Rifle HHV

$1,469.00 USD
$1,469.00 USD
Size Chart

Watch Video: How to Measure Your Head

To find the appropriate size, use a tape measure to find your head’s circumference just above the ears and eyebrows, then use the sizing chart below to make the best match.

Helmet Size (Circumference)

  • Small < 20 1/4”
  • Medium 20 1/4” – 23 1/2”
  • Large 23 1/2” – 24 3/4”
  • XL > 24 3/4”
Size: S
Color: Black

The HHV ATE® Rifle, proudly made in Sweetwater, Texas, is the only rifle rated helmet that not only stops rifle threats (including 5.56 M855 Green Tip), but keeps backface deformation to an acceptable level. Combat and police casualty data show that prioritizing frontal skull protection in helmets can dramatically reduce fatalities by up to 50%. The helmet shell (1.6lbs) is made up of UHMWPE and aramid fibers, while the up-armor is made of Silicon Carbide. The helmet utilizes our Micro Lattice Pads to maximize comfort and further decrease backface deformation.

*Lead Times are based off of ATE Lite helmet availability, please allow 1-2 days for extra assembly of in-stock helmets*


WHAT'S INCLUDED
  • Above The Ear (ATE) high cut helmet shell made from UHMWPE and next generation aramid fibers
  • Up-Armor Plate made from Silicon Carbide & Polyurea
  • Micro Lattice Padding System (Conforms naturally to the users head while providing airflow and increased protection from blunt and ballistic impacts) (Explainer Video)
  • A3S Lite Shroud (only 32 grams) compatible with standardized NVG mounts from Wilcox to Norotos, M-LOK Tactical Helmet Accessory Rails utilizing the MAGPUL M-LOK® System (Rail System Video) with integrated hook bungees, and external hook and loop.
  • Quick Attach/Detach Magnetic Fidlock Suspension System with tightening ratchet. Allows for easy adjustment and single handed, gloved operation. (Strap Adjustment Video)
  • Modular design for mission specific scalability with numerous HHV and 3rd party accessories. Rifle Rated Up-Armor, Picatinny Rails, Communications Rail Adapter Kits, Tactical and Ballistic Face Shields, Alternate padding and suspension kits. (Accessory Lineup Video)
PERFORMANCE & SPECS
  • NIJ Level IIIA (9mm FMJ ⁄ 44mag) Threats (3rd Party RTP Data) - Entire Helmet
  • Special Threat Protection: 5.56x45 (M855) & 7.62X39 (Russian MSC) (3rd Party RTP Data) - Up-Armor Area Only
  • 17gr FSP Fragmentation Protection: V-50 rating of 2,500 ft's (3rd Party V50 Data)
  • AR/PD 10-02 Rev. A (avg 83.0 G) Blunt Impact Performance (3rd Party Blunt Impact Data)
  • BFD: 9mm @1400 ft/s 6.4mm (Crown) , 14.6mm (Sides), 8.9mm (Front), and 3.2mm (Rear); Additional BFD Testing .40 S&W; 5.5mm and 16.6mm. .45 Auto 14.4mm and 16.5mm; 7.62 X 39 M43 LS 123.7 gr. Russian MSC @ 2452 ft/s 26.8 mm ; 5.56 X 45 M855 62 gr @ 3162 ft/s 14.4 mm BFD
  • (3rd Party BFD Data) (BFD Testing Video)
  • Compression & Environmental Testing: Ambient, Cold -60° F, Hot +160° F. Dry & Wet. (3rd Party Compression Data)

Testing Informational Videos:


Size, Coverage, System Weight (complete helmet minus pads; weight changes based on padding used):

  • Small 154.55 in² / 3.20 lbs (1.45 kg)
  • Medium 163.35 in² / 3.32 lbs (1.50 kg)
  • Large 170.74 in² / 3.37 lbs (1.52 kg)
  • XL 183.23 in²/ 3.52 lbs (1.59 kg)
PROPER FIT

Watch Video: How to Measure Your Head

  • Start by wrapping a measuring tape around the circumference of your head, just above your ears and eyebrows. Where the tape overlaps is your measurement.
  • No measuring tape? No problem! Use a piece of string to mark the overlap, then measure the string.
  • Use the size chart to find where your optimal tactical helmet size should be.
  • Also, don't worry if you choose the wrong size. We offer an easy exchange policy!
WARRANTY
  • Lifetime Warranty on Hard Components
  • 10-Year Warranty on Shell Performance
  • 1-Year Warranty on Soft Components
  • Battle Scars Warranty offers a helmet replacement if our product has saved your life.

Please note that our warranty does not cover normal wear and tear, misuse, abuse, or improper storage of your ballistic helmet.

SHIPPING & RETURNS

Same-Day Shipping on in-stock items: Place your order before the daily cutoff time, and we'll ship it out to you on that very day. In cases where a product is out of stock, we take pride in offering faster lead times than our competitors, so you can still expect a speedy delivery.

Exchanges & Returns: Be sure to inspect your new helmet carefully when you receive it — if you notice any defects or are dissatisfied with it for any reason, send it back to us within 30 days for a hassle-free exchange or refund.
